Terminal Box is made of high-quality ABS material. It is widely applied to the splicing and distributing variable optical cables.

Specification Download

Features

• Special double D box body design, light weight, compact structure.

• Rotary Internal structure,super-stratum for splicing and distributing, substratum for cable arrangement.

• Cable input&output is mechanical sealing

• Protection grade reach IP65.

• Box body use ABS material.

Dimension

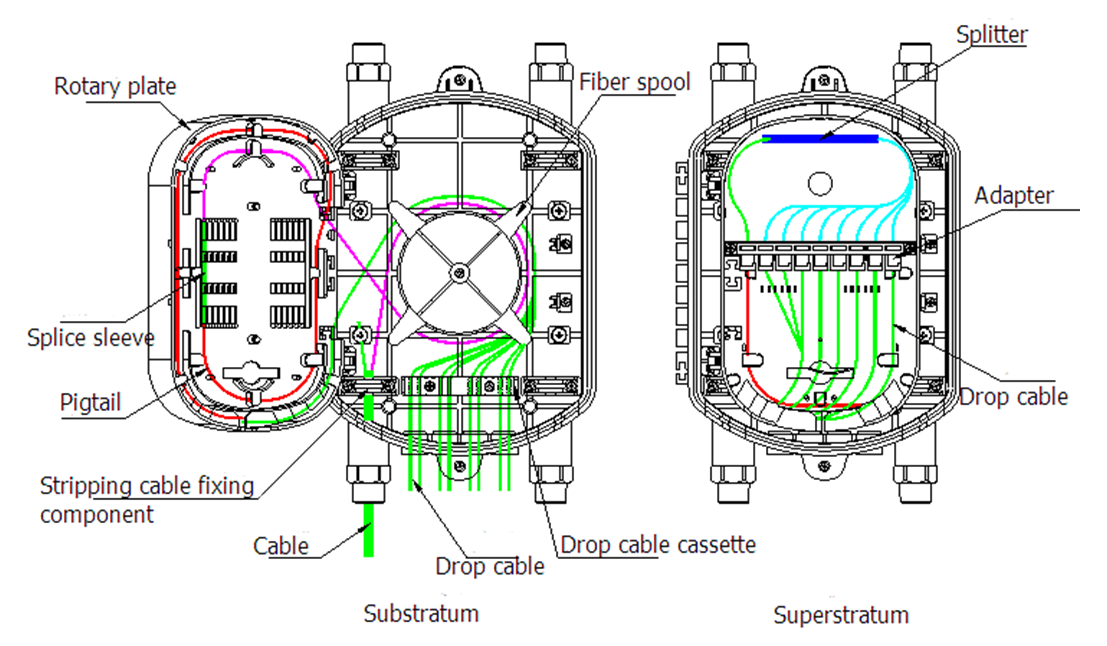

Cable Arrangement

Configuration

Product Model

Fiber count

Splitter

Splice tray

Model & Qty

Cable port diamter

CH018A

1*8 PLC

(steel tube type)

2pcs Φ8mm, 2pcs Φ12mm, 8pcs Φ3mm

Packing Information

Carton size	G.W.	Qty/ctn
393044cm	15KG	10pcs
