The EoC products are used in pairs, with 1ch transmitter connecting to 1ch receiver, or 1ch transmitter(s) connecting to 8/16ch receiver. The following graph shows the connection of 1ch transmitter with 1ch receiver and 16ch receiver.
Application 1: 1ch EoC transmitter VEC11T-EC + 16ch EoC receiver VEC116R-PC. As shown on the left of the red dotted line, a maximum of 16 transmitters may be connected to the receiver.
Application 2: 1ch EoC transmitter VEC11T-EC + 1ch EoC receiver VEC11R-PC. As shown on the right of the red dotted line, this kind of connection is suited for more scattered applications.
Features
• IEEE802.3, IEEE802.3u compliant
• 500m transmission distance
• Compact design for minimal space
• Maximum PoE power of 30W
• EoC, PoC, PoE three-in-one
• Industrial wide temperature range -20~+75ºC
• Multi-layer PCB design with improved surge, static, and lightning protection
Specifications
Item | Description |
Power | Power Supply | PoC (Power over Coax) |
Consumption | <2W (without PoE) |
Coax Port | Transmission Medium | 75-5 or above coax cable |
Operating Frequency | 2M~28M |
Modulation | Wavelet-OFDM |
Transmission Rate | 210M (Max) |
Transmission Distance (PoE) | 0~500M (75-5 cable) |
Transmission Distance (Non PoE) | 0~2000M (75-5cable） |
Ethernet Port | Transmission Medium | Cat5e/6 |
Standard | IEEE802.3，IEEE802.3U |
Ethernet Delay | <1ms |
Protection | ESD | IEC61000-4-2: 6KV (contact), 8KV (air) |
Anti-Thunder Protection | IEC61000-4-5: 1KV (DM), 2KV (CM) |
Environment | Operating Temperature | -20℃~+75℃ |
Storage Temperature | -40℃~+85℃ |
Humidity | 0~90% (non-condensing) |
Mechanical | Dimensions | 29mmX37mmX76mm |
Material | Aluminum |
Color | Black |
Weight | 0.2Kg |

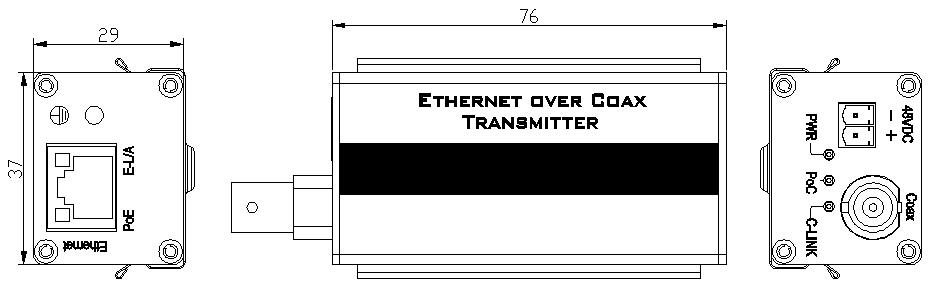

Dimensions (Unit = mm)
Panel Views and LED Indicators
Coax panel Ethernet panel
1 - Power input; 2 - LED indicators; 3 - Coax cable connecter; 4 - Ethernet RJ45 port; 5 – Grounding terminal
LED | Color | Status | Description |
PWR | Orange | On | Power supply is normal. |
PoC | Green | On | PoC power supply is normal. |
C-LINK | Green | On | EoC connection is normal. |
PoE | Green | On | Successful handshake with PD and supplying power to PD. |
E-L/A | Orange | On/Blink | On: Ethernet link is normal. Blink: The data is active. |
