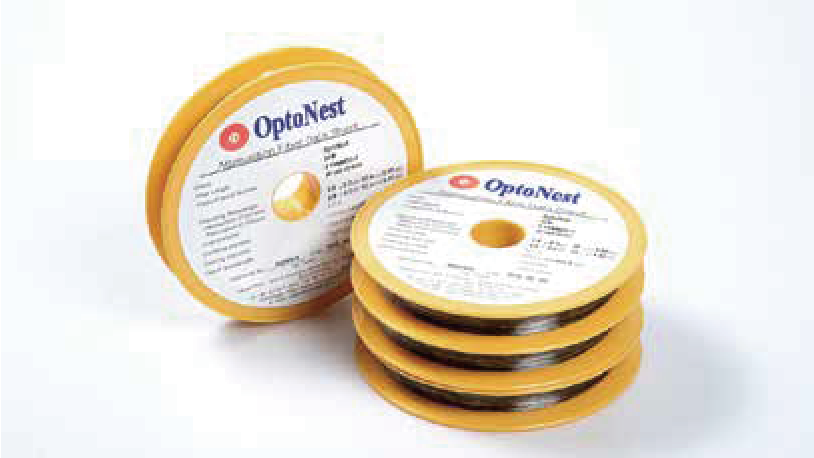

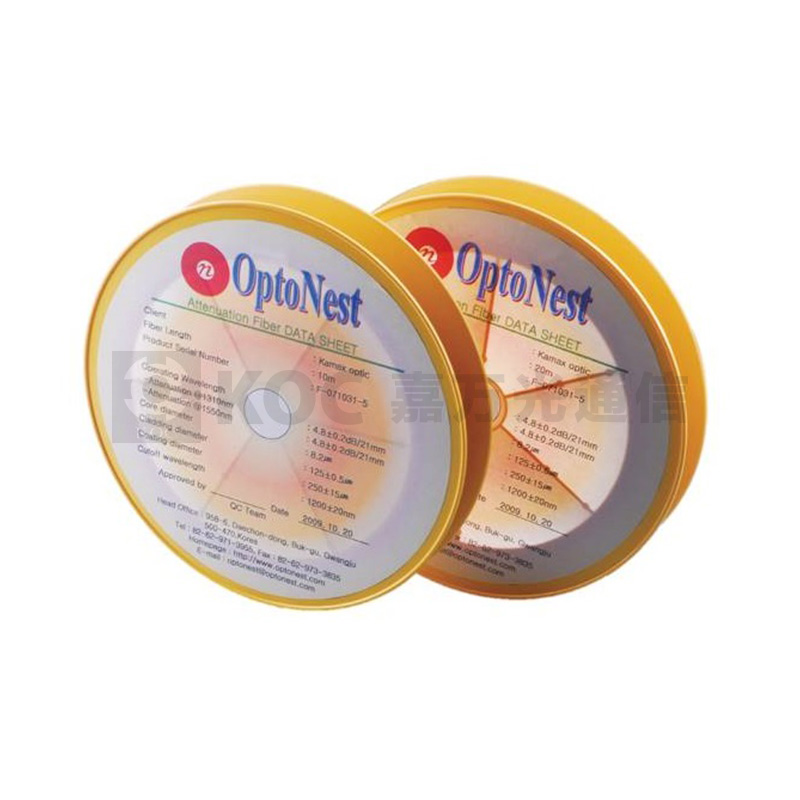

OptoNest Attenuation Fiber

OptoNest’s specialty optical fibers are fabricated for DWDM attenuator application with flat attenuation properties. The attenuation fibers have the potential to offer high reliability and stable input power endurance. OptoNest’s attenuation fibers are designed to be used for fixed or in-line type attenuator and terminator covering all optical communication wavelength (1250 - 1650nm) with 1 - 40dB/21mm.

Specification Download

@Email to Sales

Features

• Ideal for DWDM application

• Durable for high-input power

• Precise control of attenuation range

• High attenuation for fixed, in-line type attenuators and terminator

• High reliability

Application

• Dynamic power leveling in optical add/drop multiplexing

• EDFA

• Dynamic power balancing in DWDM systems

• CATV systems

• Optical network equipment

• Bi-directional systems

Specifications

Parameter	Values
Core Diameter	8 - 10μm
Numerical Aperture	0.12 ± 0.01
Inner Cladding Diameter	40 - 50μm
Outer Cladding Diameter	125 ± 0.5μm
Core to Cladding Concentricity Error	≤ 0.8μm

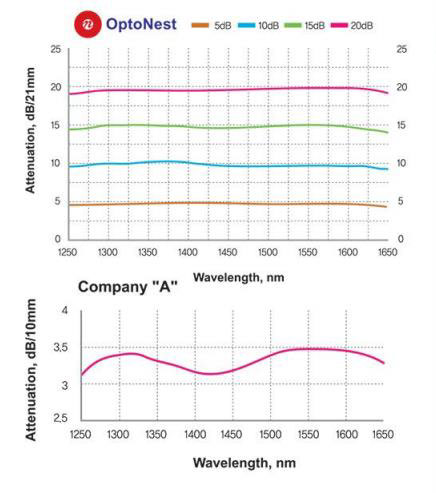

Attenuation	1~20dB(10mm) / 1~30dB(15.4mm) / 1~40dB(21, 22.4mm)
Attenuation Tolerance	± 7.5%
Storage Temperature Range	-40°C - 85°C
Operating Temperature Range	-40°C - 75°C
Cut-off Wavelength	1200 ± 20μm
Operating Wavelength	1250 - 1650nm
Optical Power Endurance	≤ 0.2dB (@200 mW)
