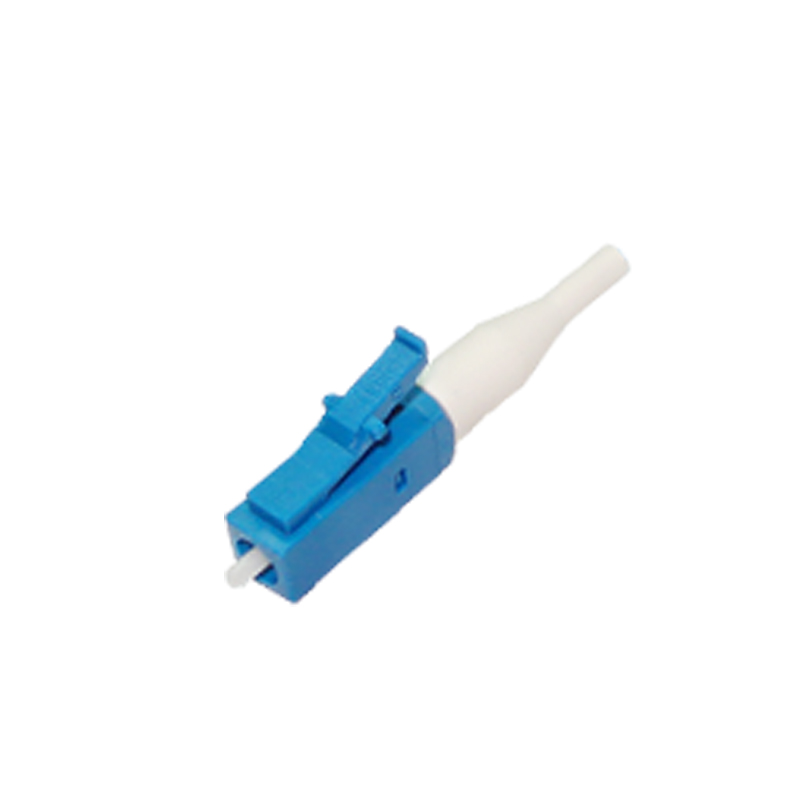

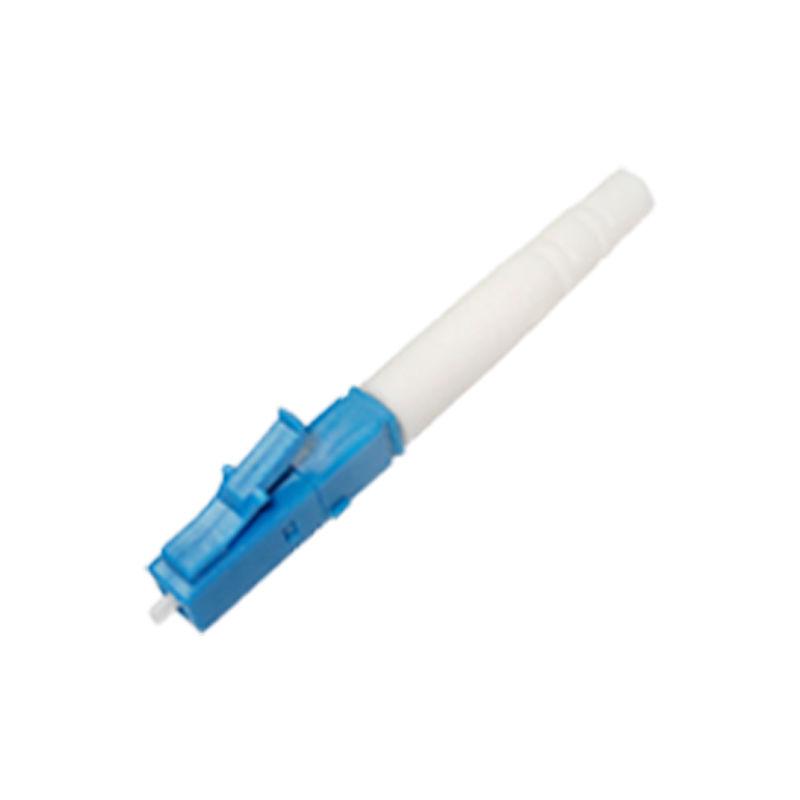

0.9mm LC Connector

0.9mm LC connectors usually are used for patchcord&pigtail. And the connectors have many types can be chosed, for example: APC or UPC ferrule, blue or green hosuing ...

Specification Download

@Email to Sales

Features

• High precision alignment

• Precision anti-rotation key and corrosion resistant body

• Good insertion loss and back reflection loss

• ROHS compliant

• TIA604-10&IEC61754-20 compliant

Application

• Gigabit Ethernet

• Video

• Multimedia

• Active device termination

• Premise installations

• Telecommunication networks

Standards

All components of/and the final product are designed and tested to conform the requirements of IEC 60874, Bellcore/Telcordia GR-326, EIA/TIA 604-10, IEC61754-20, EIA/TIA 568, IEC61300-2,IEC61300-3, IEC61753-1, EIA/TIA455.

Item	Single mode	Multimode
Insertion Loss	≤0.3dB	≤0.3dB
Return Loss	≥50 dB (PC) ; ≥60 dB (APC)	≥30 dB (PC)
Durability	<0.20 dB typical change, 1000 matings	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤4μm
	125.5+1/-0μm, Concentricity: ≤1.0μm
	126.0+1/-0μm, Concentricity: ≤1.0μm
	126.0+1/-0μm, Concentricity: ≤1.0μm

Availability

• The connector can be supplied as a pre-assembled one-piece connector or as connectorkits.

• Housing kits without ferrule are available.

• LC/PC and LC/APC are available.

Housing Colors	Boot Type	Boot Colors
SM-PC(Blue)	0.9mm 16.5mm Length smooth boot	Blue

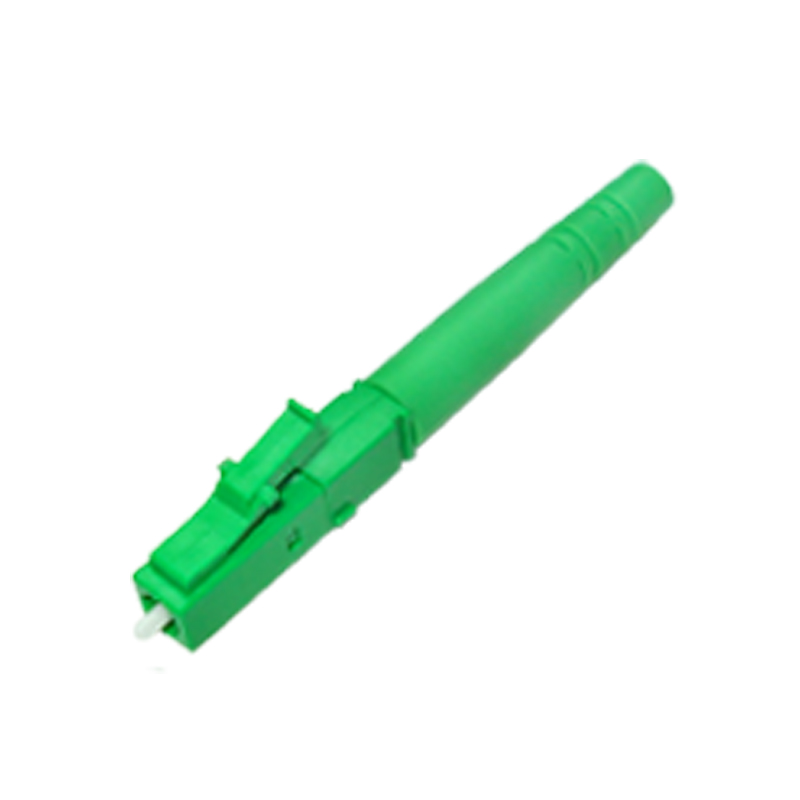

SM-APC(Green)		Green
MM-PC(Beige/Aqua/Magenta)		White
		Beige
		Aqua
		red
		Magenta

0.9mm LC Connector.pdf
